The Soundelux Model U195
cardioid condenser microphone

The Soundelux U195

Button

The Soundelux U195

Specifications

  • Pattern: cardioid only

  • Frequency range: 10 Hz through 20 kHz

  • Sensitivity: 14 mV/Pa

  • Equivalent noise: 23 dB unweighted; 12 dB “A” weighted

  • Signal to Noise Ratio: 71 dB unweighted; 82 dB “A” weighted

  • Maximum SPL: 125 dB @ 0.5%

  • Impedance: 50 ohms

  • Dynamic range: 115 dB

  • Capsule size: 1 inch in diameter

  • Dimensions: 2.09 by 7.7 inches (5.3 by 19.5 cm)

  • Weight: 1.75 pounds

  • Power consumption: 0.5 mA @ 48 vdc

  • Power supply: phantom-powered, user provided

U195 detail
The U195 selector switches for its attenuator pad, “fat-normal” mode, and bass roll-off filter.

Frequency spectrum chart

The Soundelux U195 in its case
Microphone courtesy of Jeff Rudisill

Specifications art

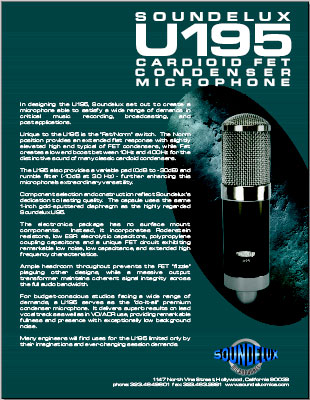

Download the specifications sheet for this mic.

Specifications art

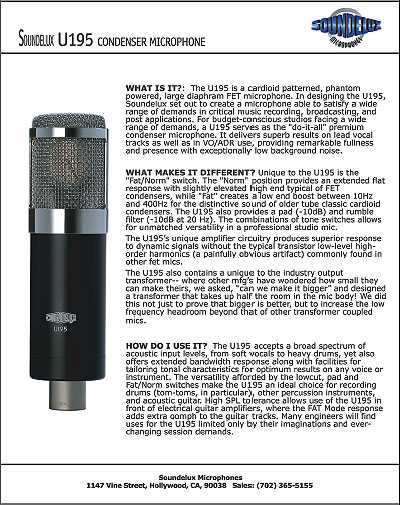

Download the marketing sheet for this mic.
