The Shure Model 545SD
Unidyne III cardioid dynamic microphone

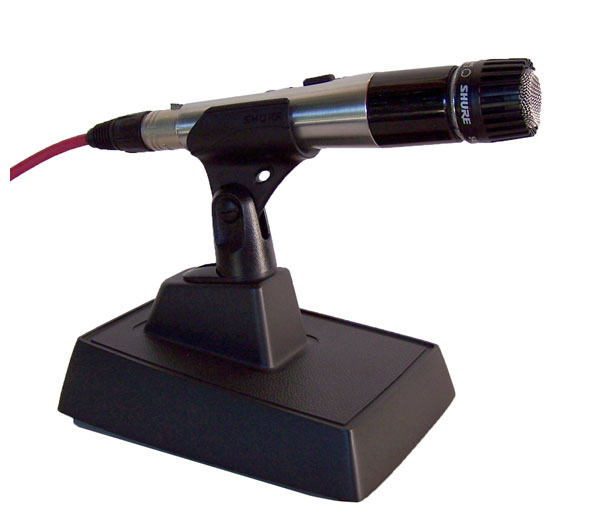

Shure 545SD side

Button

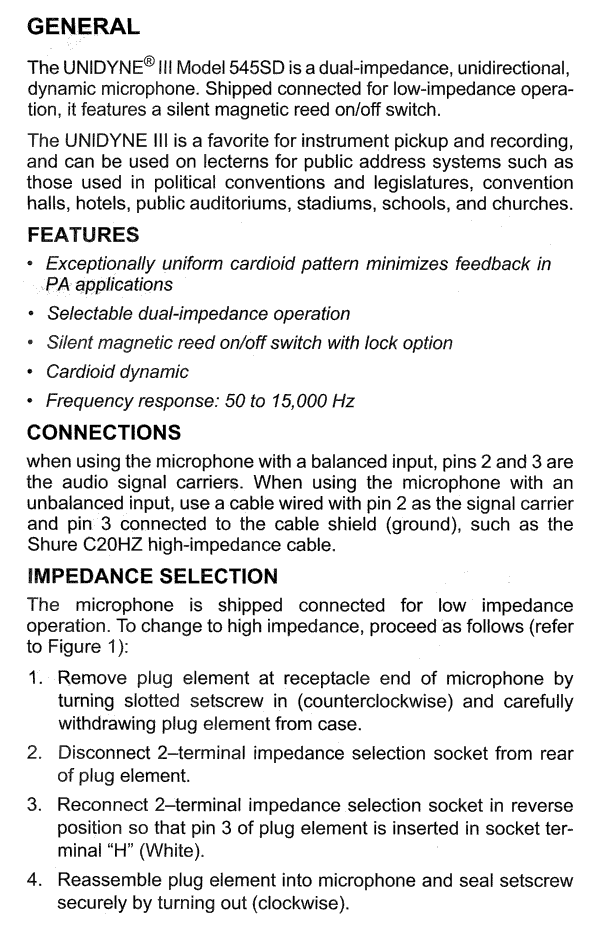

1

Figure 1

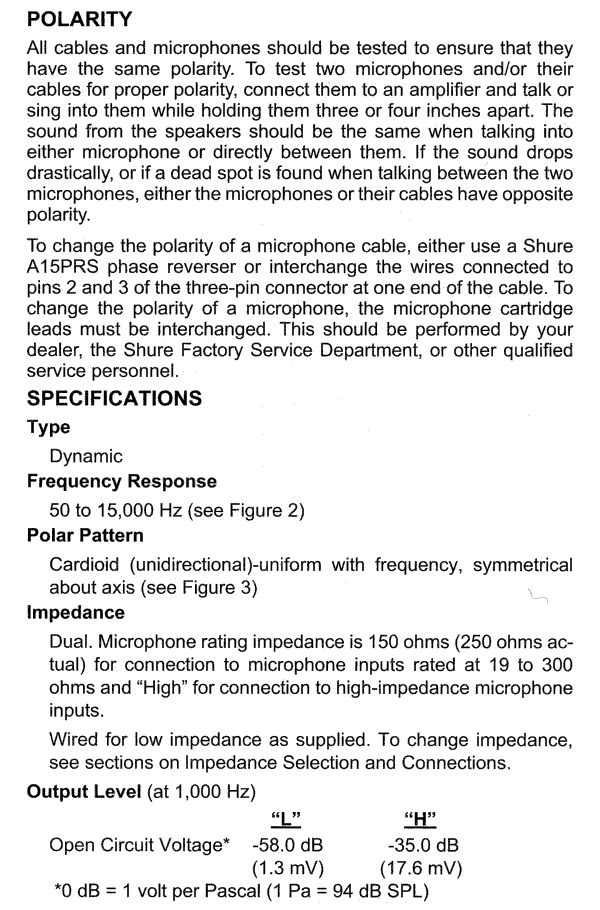

2

Figure 2

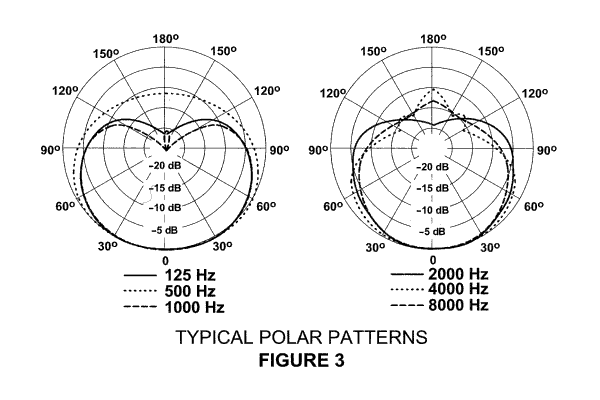

Figure 3

Shure 545SD top

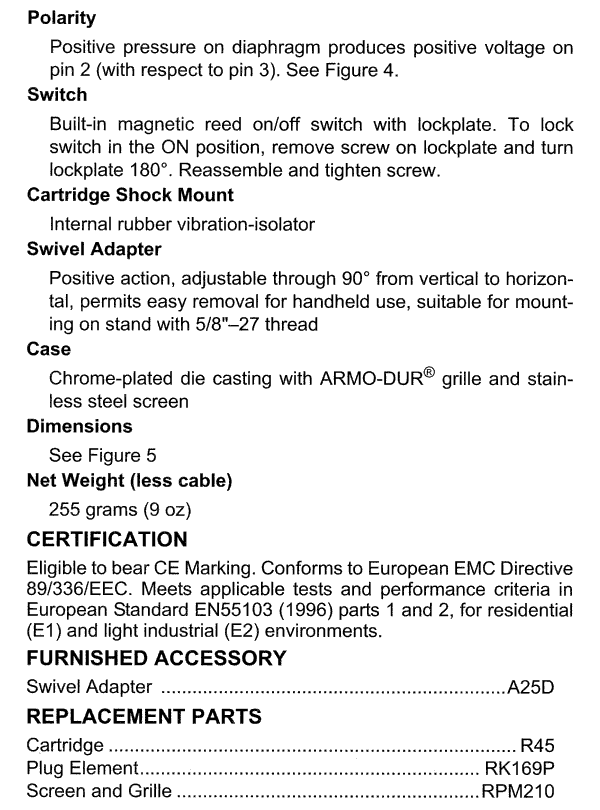

3

Figure 4

Figure 5

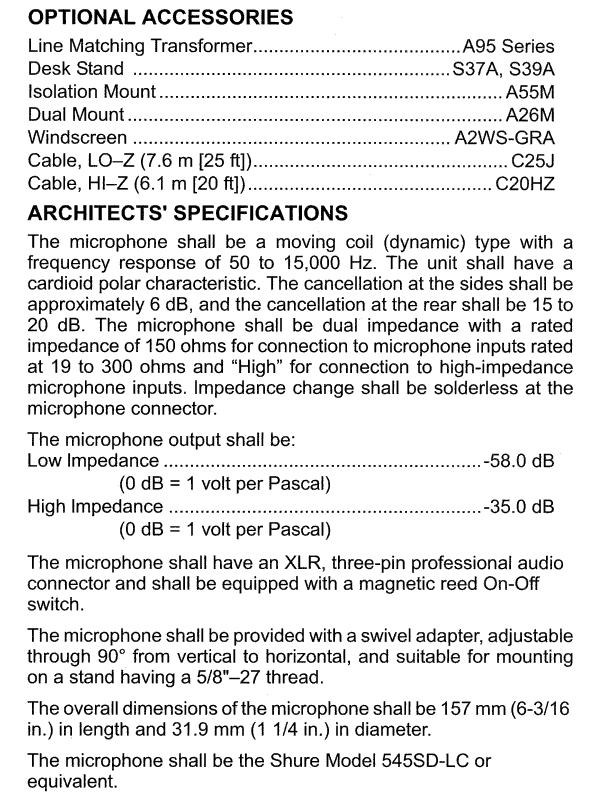

4

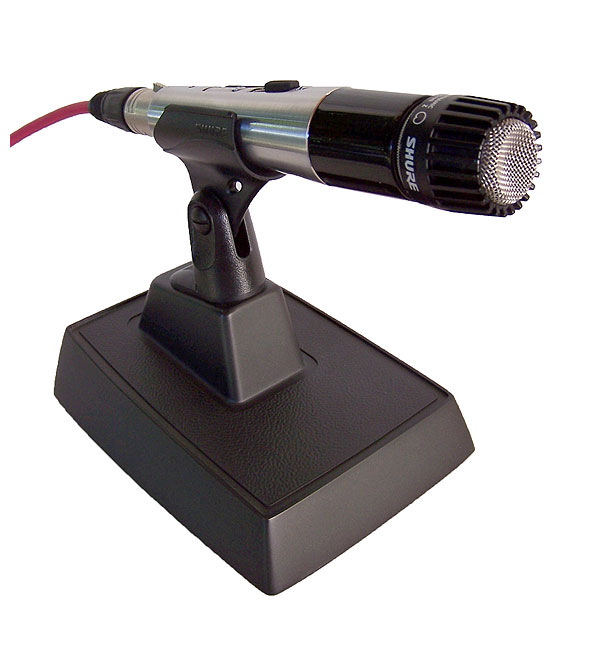

Shure 545SD front

Cover
Download the User Guide for this mic.
