The Electro-Voice Model RE55
omnidirectional dynamic microphone

The Electro-Voice RE55

Description
The Electro-Voice RE55 is an omnidirectional dynamic microphone de­signed for the most demanding professional applications. Ideal for boom or stand mounting in recording and broadcast use, it is excellent also for close-up hand-held use in stage and interview situations.

Smooth, wide-range response, high output level, and low sensitivity to me­chanical shock, combined with functional easy to hold styling, make the RE55 one of the most versatile professional mics ever created. The non-reflecting matte satin nickel finish eliminates hot spots for on-camera use.

This microphone features the exclusive non-metallic E-V Acoustalloy dia­phragm that assures smooth frequency response, and is impervious to damage from extremes of temperature and humidity.

The Electro-Voice RE55 Frequency response

Applications
The RE55, an omnidirectional microphone, is outstanding in
situations where uniform sensitivity in all directions is desirable.

  • Frequency response, flat and uniform across the entire usable range,
    makes the RE55 a good choice for symphonic and other wide-range
    recording situations where reverberation is not a problem.

  • Applications include calibration for use as a secondary standard for
    acoustic measurements.

  • Its small diameter (¾-inch shank) makes the RE55 comfortable and convenient for hand-held use by vocalists for stage and television work
    and for news reporters conducting interviews.
Wiring diagram

Specifications

  • Generating Element: Dynamic

  • Frequency Response: 40 to 20,000 Hertz

  • Polar Pattern: Omnidirectional

  • Impedance: Lo-Z (150 ohms)

  • Output Level: -55 dB (0 dB = 1 mw/10 dynes/square centimeter)

  • EIA Sensitivity: -149 dB

  • Diaphragm: Electro-Voice Acoustalloy

  • Case Material: Steel

  • Dimensions: 10½" long, shank ¾" diameter

  • Finish: Non-reflecting matte satin nickel

  • Net Weight: 8½ ounces without cable

  • Cable Connector: Mates with Switchcraft A3F

Dimensions Ready for mounting The 342 Security Stud Mount The E-V RE55 in an E-V 307A EDS cover

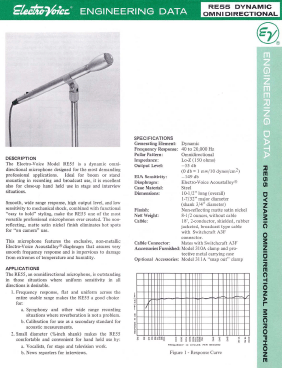

Download the original data sheet for this mic.

New EDS

Download the revised data sheet for this mic.
