The Philips Model 9585
omnidirectional dynamic microphone

The Philips 9585

Our friend Cyril needs our assistance in finding the mating plug to his Philips Model 9585 microphone, seen here. Near the bottom of this page is an image he found on the Web that shows the plug he is seeking.

Cyril says: It has three positions: 200, 500 or 10,000 ohms. It is a dynamic microphone (as written on the instruction manual), the reference number of the connector is 9588/00. Dimensions are: microphone length 137 mm (5.4 inches) with connector, 105 mm (4.15 inches) for the body only. Diameter 55.5 mm (2.18 inches). Diameter of the connector: 20.5 mm (0.81 inches), and 18.5 mm (0.73 inches) inside.

The Philips 9585

Frequency response

The Philips 9585

Polar pattern

The Philips 9585

The Philips 9585

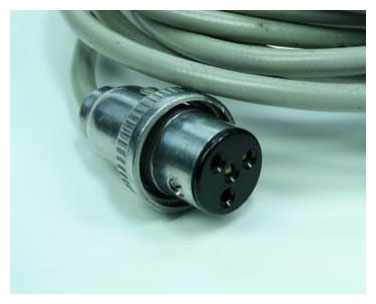

Connector

Manual cover
Download the Instruction Manual for this mic.
Seven pages, in French.
