The Sennheiser MKH 805
shotgun microphone

Microphone courtesy of Jeff Rudisill

The power supply label’s typewritten letters and numbers are MZN 5/1, 66118, 110, 220, and 5.

Description and specifications are not yet available. If you have anything appropriate and are willing to share, PLEASE let us know. Any scans that you can send us as an email attachment would be very much appreciated. You can send us your contact information at http://www.coutant.org/info/

OCTOBER, 2007 UPDATE: Through the thoughtfulness of Mr. Mike Peter Reed, we now have available two Sennheiser service manuals. The first is for the MKH 405 T, MKH 805 T, and the MKH 105 T. The second covers the MKH 415 T, MKH 435 T, and the MKH 815 T. Each is downloadable as a PDF. Thank you, Mr. Reed.

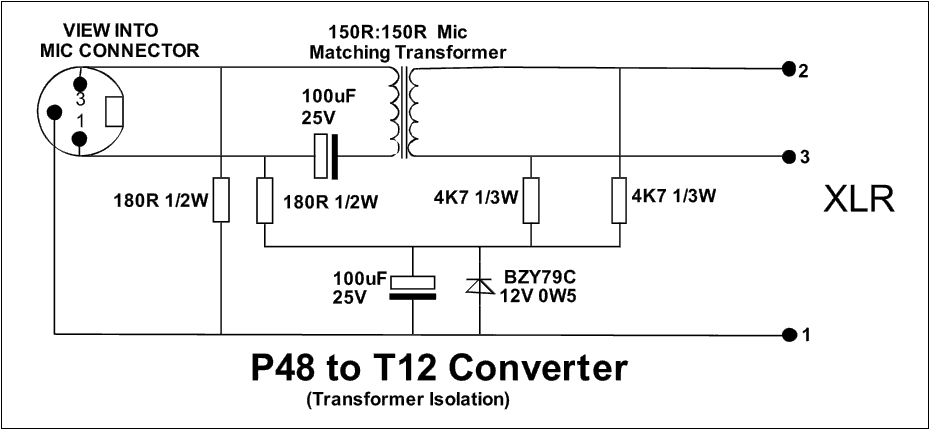

JANUARY, 2008 UPDATE: By way of the knowledge, courtesy, and skill of Mr. Bob Birkbeck, we can now offer downloadable circuit diagrams of his design for the Type MZN 5/1 power supply, a P48 to T12 converter with transformer isolation, and a P48 to T12 converter with capacitor isolation. Thank you, Mr. Birkbeck.
