Studio Projects Model C1 cardioid condenser microphone

The C1 is a high quality true condenser pressure gradient microphone with a FET impedance converter. The polar pattern is fixed cardioid. The C1 uses a transformerless circuit which features low noise and wide dynamic range. The polar response is very linear with a slight rise in frequency response between the 5 kHz to 12 kHz range. Signals coming from the side and rear are attenuated with very little phase coloration. The C1 also features a three-position switch on the rear which alternately enables a –10 dB pad, and a 150 Hz high-pass filter.

The microphone is supplied with a shock mount, windscreen, and heavy-duty road case with locking latches.

The condenser element is manufactured to the classic Braunmuhl Weber “center electrode” design which provides smooth extended frequency response. The diaphragm material is 6 μm Mylar with a vapor-deposited gold coating.

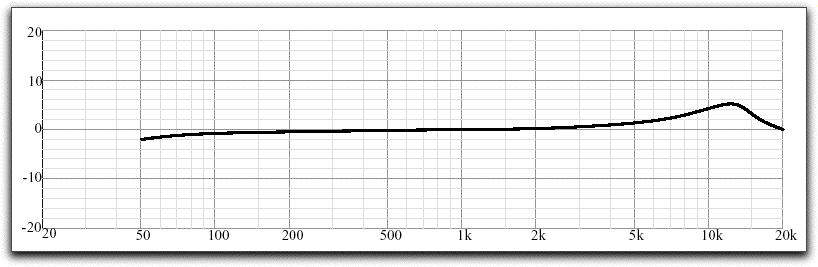

Frequency response

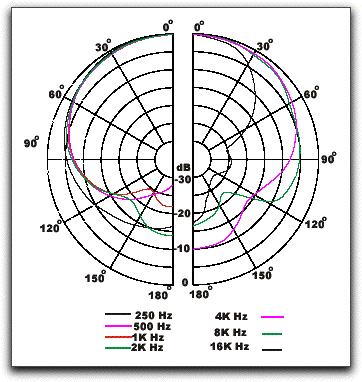

Polar Pattern

MP3 Shoot-out

Hear the Studio Projects C1

Hear the Neumann U 87

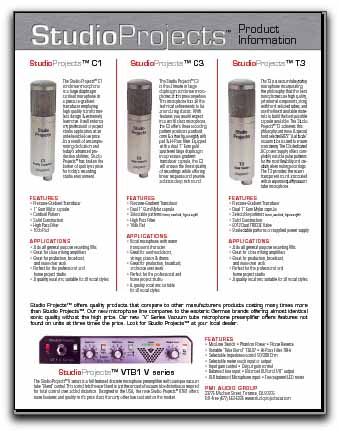

Download the Product Information for this mic.

This page concludes the microphone tour. Why not visit the Table of Contents.
