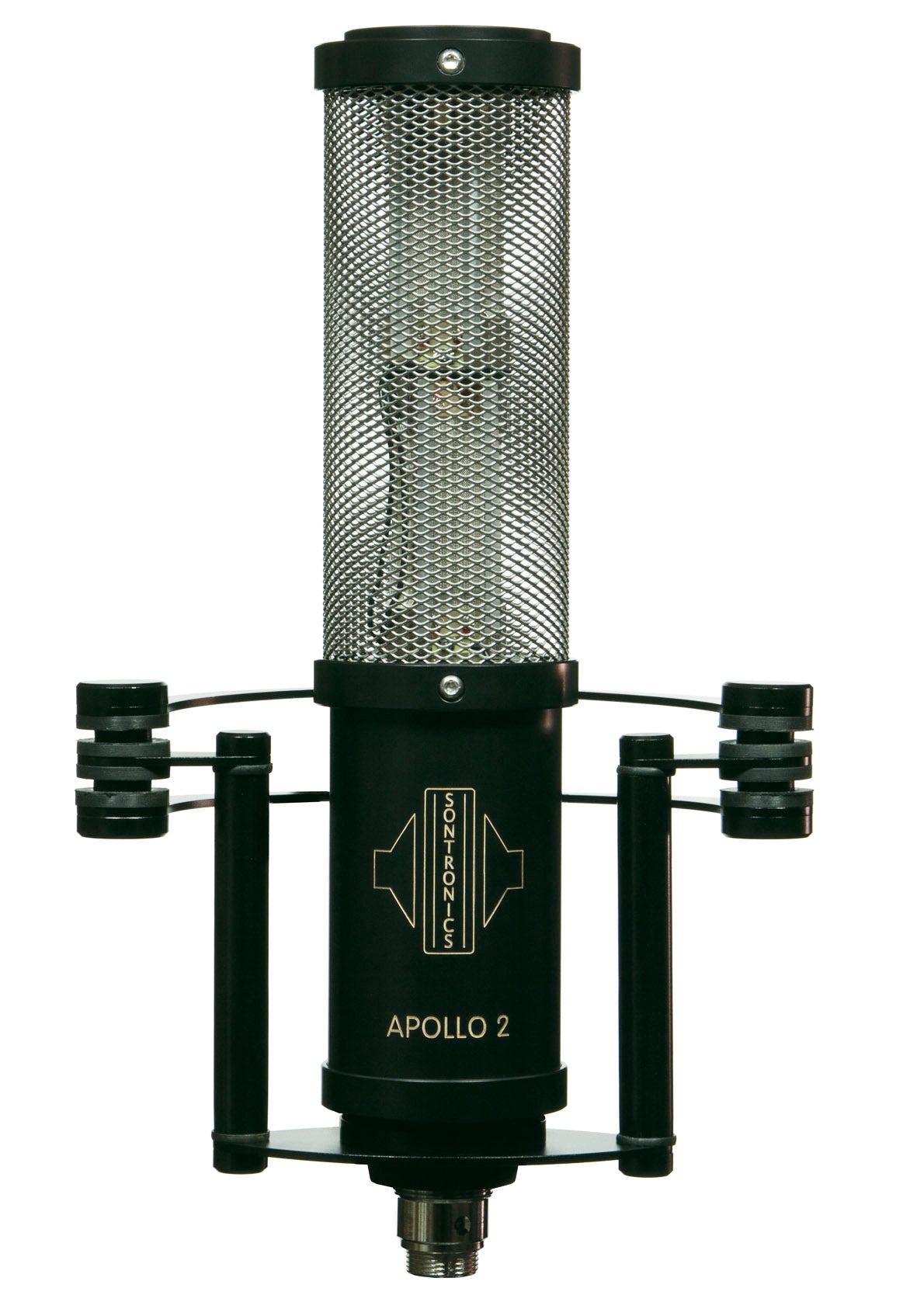

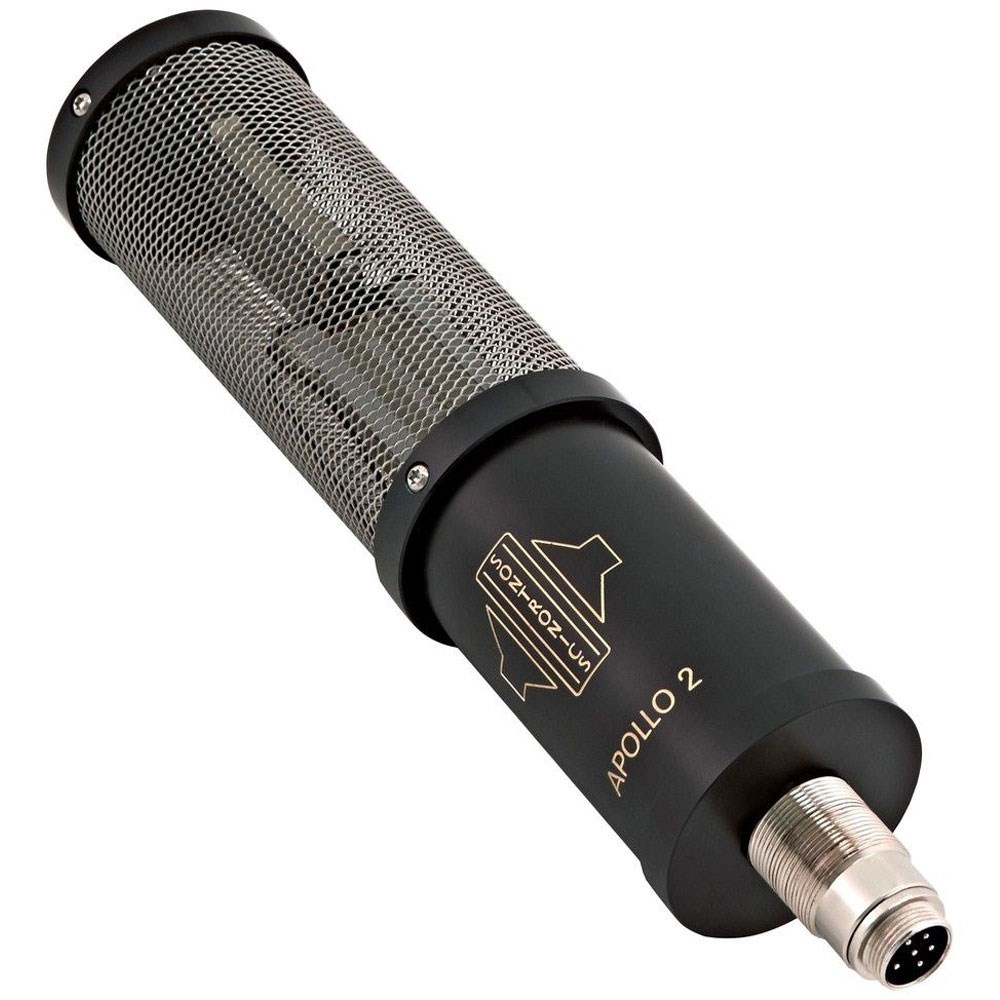

The Sontronics Apollo
stereo (Blumlein) ribbon microphone

Sontronics Apollo

Button

Sound sample is courtesy of the British Sound Recording Association.
Mr. Jim Pucell provided the introductory remarks.

Apollo frequency response

Technical Data

  • Frequency Response: 20 Hz to 15 kHz

  • Sensitivity: 18mV/Pa −33dB ±1dB (0dB = 1V/Pa 1,000 Hz)

  • Polar Pattern: Blumlein stereo figure-of-eight

  • Impedance: ≤150 Ohms

  • Equivalent Noise Level: 12dB (A-weighted)

  • Power Source: Phantom power 48V ±4V (×2)

  • Connector: Six-pin connector to 2× three-pin XLR-M

Polar pattern

User guide
Download the user guide for this mic.

Specifications
Download the specification sheet for this mic.

MusicTech review
Download a MusicTech Magazine review of this mic.
Issue 55, October, 2007.
