STC 4021 omnidirectional dynamic mic
Standard Telephones and Cables Limited

Recently added (October, 2007) are these STC marketing brochures for your perusal.

STC 4021

Button

An abundance of good work has already been done on the history of this microphone.
Rather than copy it here, these links to other sites are provided for your edification:

http://www.richardsradios.co.uk/4021c.html

http://www.roger.beckwith.btinternet.co.uk/bh/mics/4021.htm

http://www.historyofpa.co.uk/pages/microphones.htm#bbc

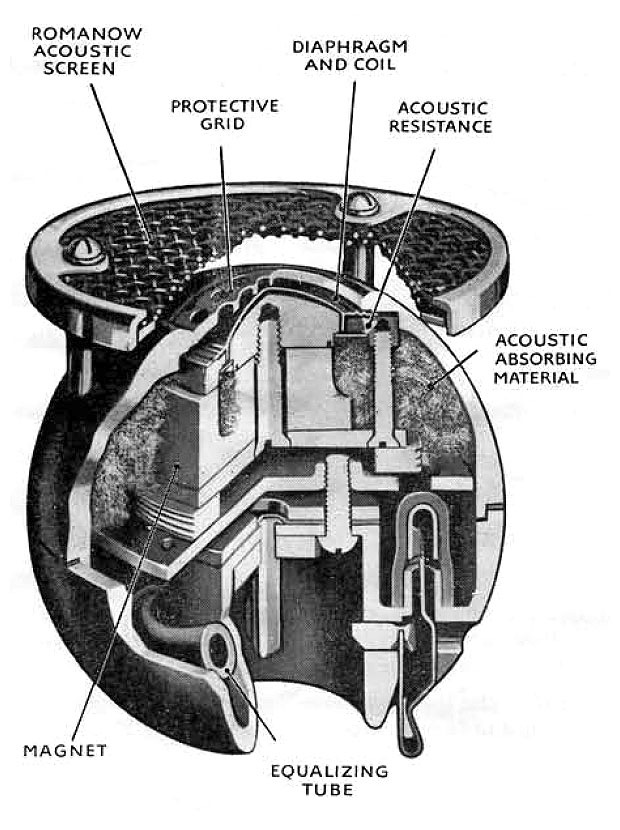

Cutaway view

A discussion of the 630A microphone, Western Electric’s answer to the STC 4021, can be found at http://www.coutant.org/we630a/index.html Reprinted from the Bell Laboratories Record of October, 1935, author R. N. Marshall gives a thorough report on the research and development that went into the design of the Western Electric 630A microphone, which is quite similar to the STC 4021.

STC 4021

The 4021 microphone is a pressure operated moving coil or dynamic microphone and is a carefully engineered and precision built instrument, the general design of which has been proved over many years of use in high quality studio work and acoustical measurements. Each microphone is tested in free-field conditions to stringent performance requirements. The polar response is omnidirectional; i.e., the mean sensitivity is independent of the direction of the incident sound, and the frequency characteristic is nearly so. This is, in part, achieved by the use of a spherical case and a porous front screen designed according to the principles disclosed by F. F. Romanow in British patent 436508.

STC 4021

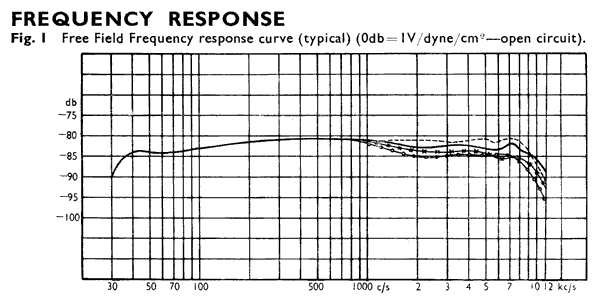

Because of the wide frequency range, reliability and robustness of the 4021 microphone, it is suitable for measurement and standardization work. For this purpose it is possible to supply free field calibrations at particular frequencies. Further details of this service are available on application. The microphone is practically distortionless in all normal sound fields. The total harmonic content is of the order of ½ to 1% at sound intensity levels approaching the threshold of pain.

STC 4021

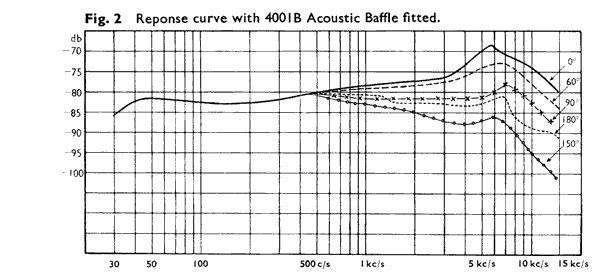

In certain applications it is desirable to have some rise in response and some directional properties at high frequencies. To provide such characteristics a 4001B acoustic baffle may me easily fitted in place of the Romanow front screen. The curves of figures 1 and 2 show the effect on this response. The microphone is suitable for use in tropical or marine atmospheres. It is, however, essentially an indoor instrument and should not be used out-of-doors in severe wind. The standard finish is stove black shrivel enamel and satin-chrome plating. The outlet of the microphone is a three-pin connector located inside the die-cast case, and a 4069A jack is required to make connection thereto. The two outer pins connect to the coil, and the centre pin to the body of the microphone. The microphone incorporates a locking device to prevent it becoming accidentally detached from the 4069A jack.

Text above is quoted from the STC Sound Reproduction
Equipment booklet No. 1620, produced in 1961.

STC 4021

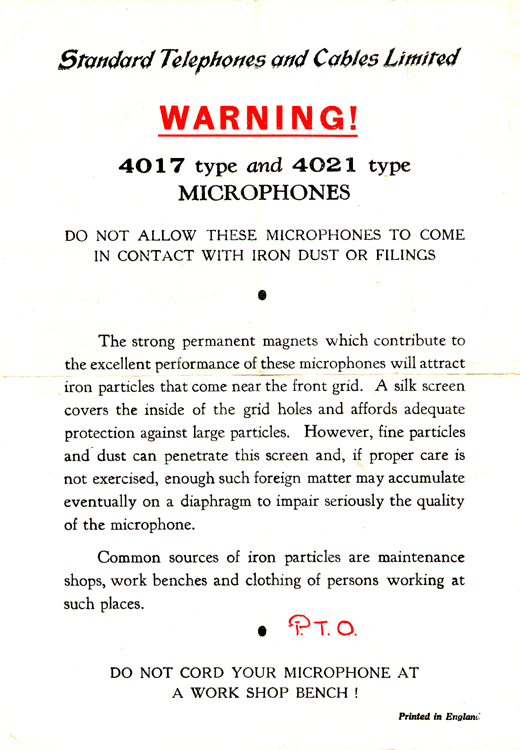

The reverse side of this sheet reads as follows: “IMPORTANT: Coil Resistance and Breakdown Measurements. Care must be exercised not to pass more than 1 m.a. D.C. through the coil, and if it should be desired to check breakdown to case, the voltage should not exceed 80 volts applied through a protective resistance which will limit the current to 1 m.a.”

Frequency response

Frequency response

Frequency response

Frequency response

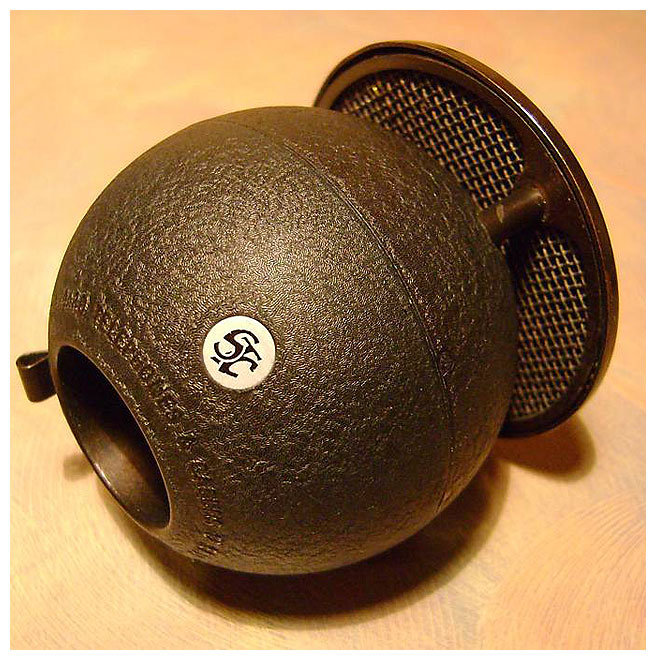

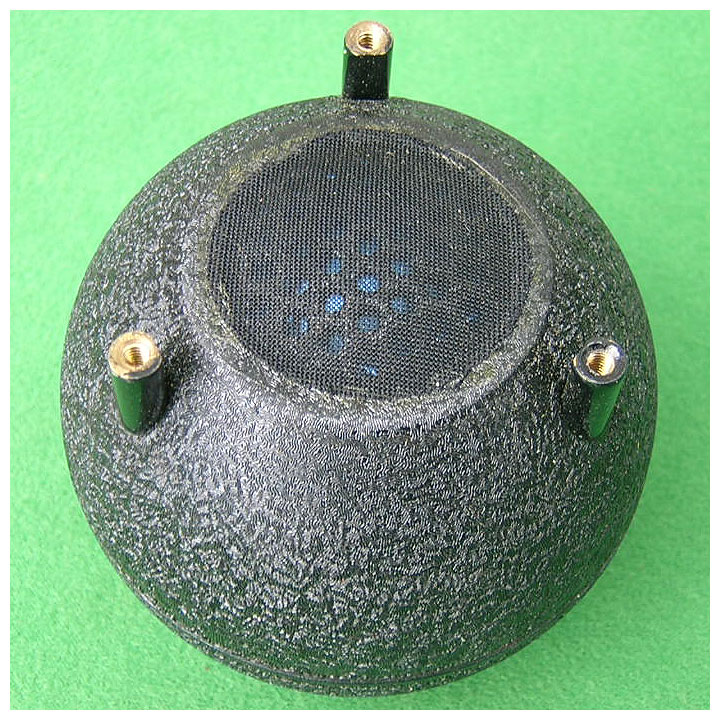

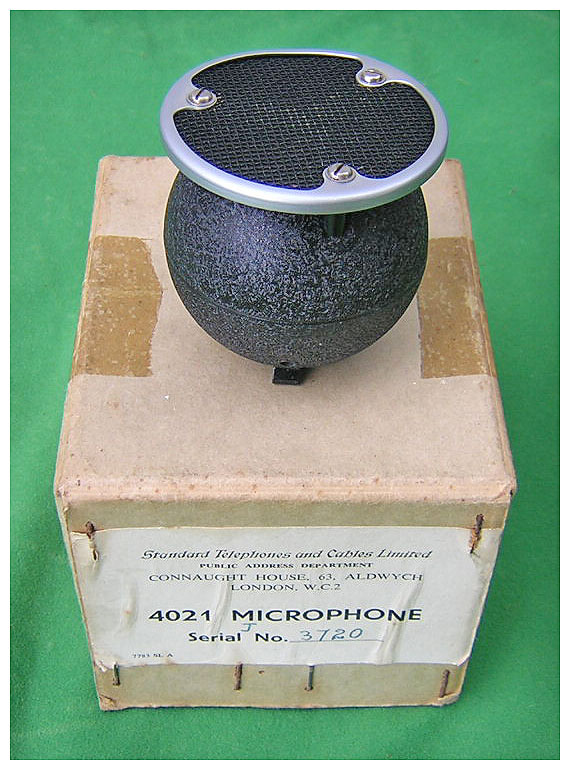

The following three images were provided via the courtesy of Greg Thompson.

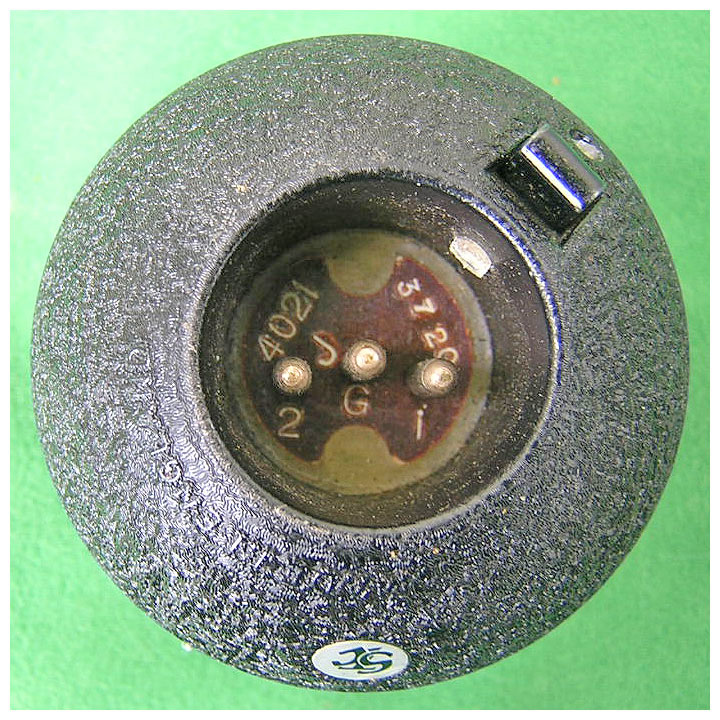

STC 4021

STC 4021

STC 4021

The following slide show images also were provided via the courtesy of Greg Thompson.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

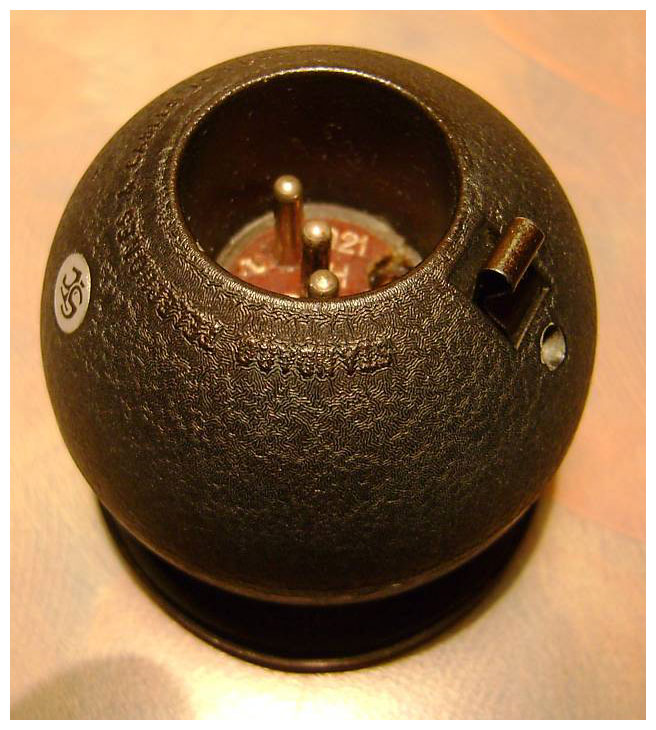

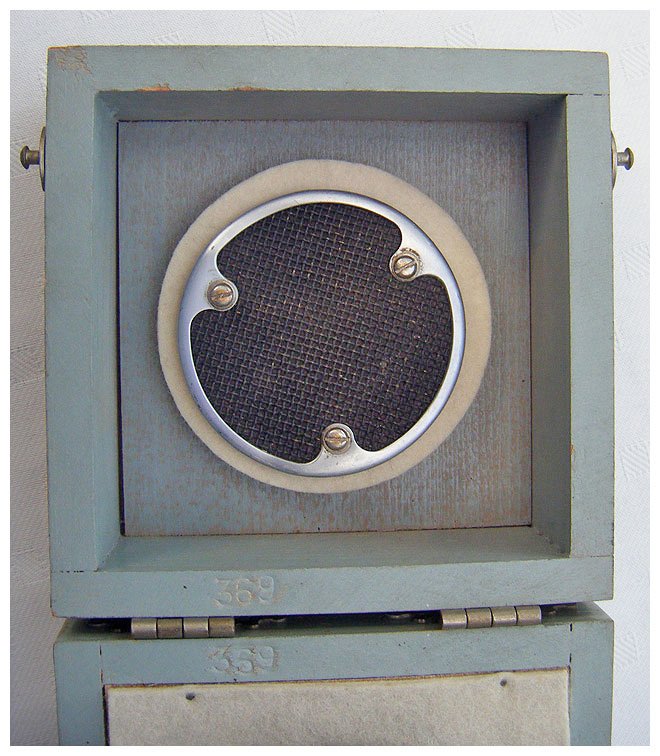

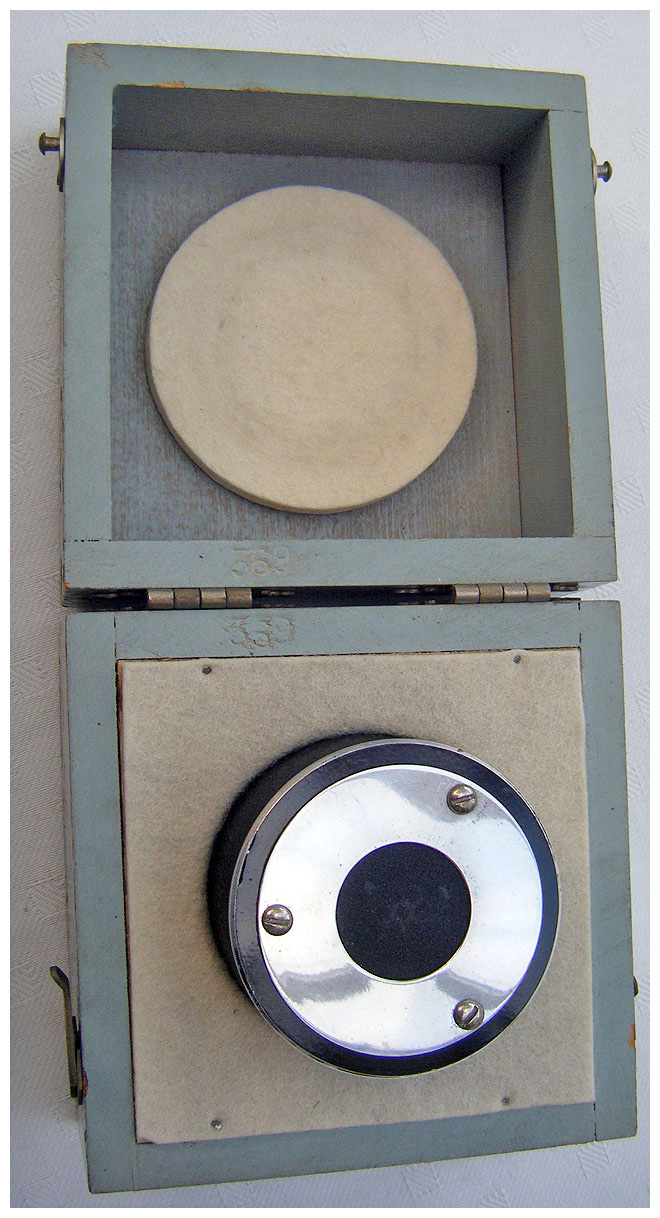

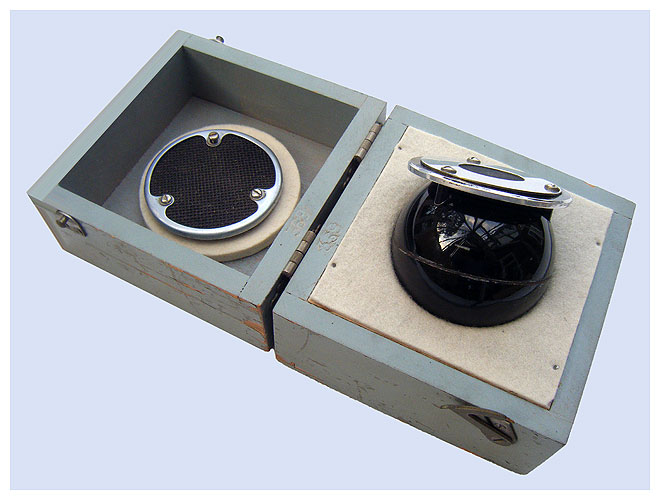

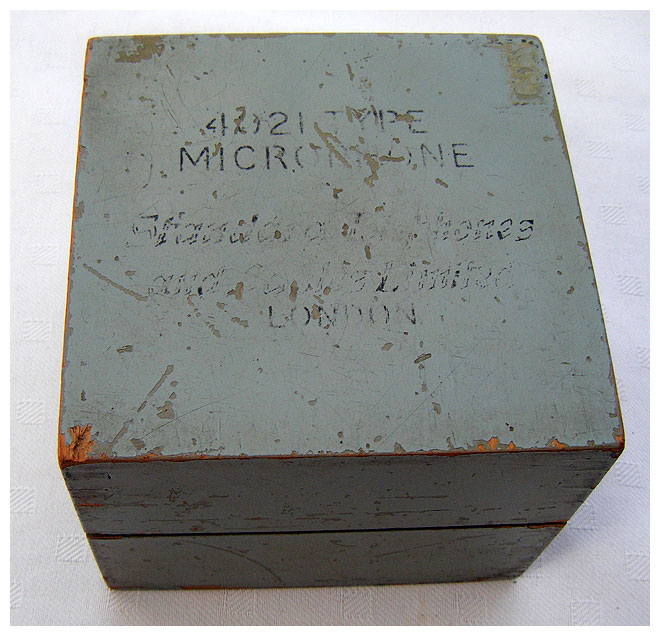

The following four images were provided through the courtesy of Roger Beardsley.

Image courtesy of Roger Beardsley Image courtesy of Roger Beardsley Image courtesy of Roger Beardsley Image courtesy of Roger Beardsley

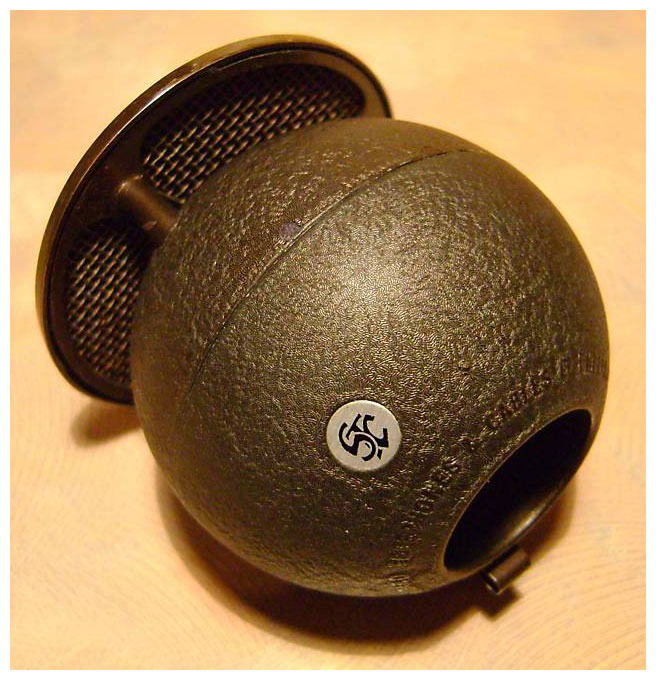

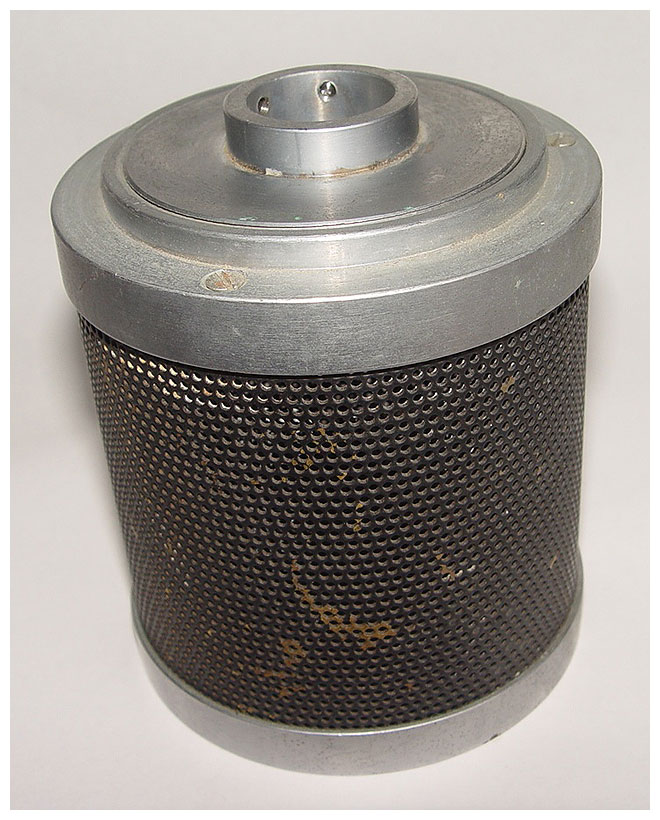

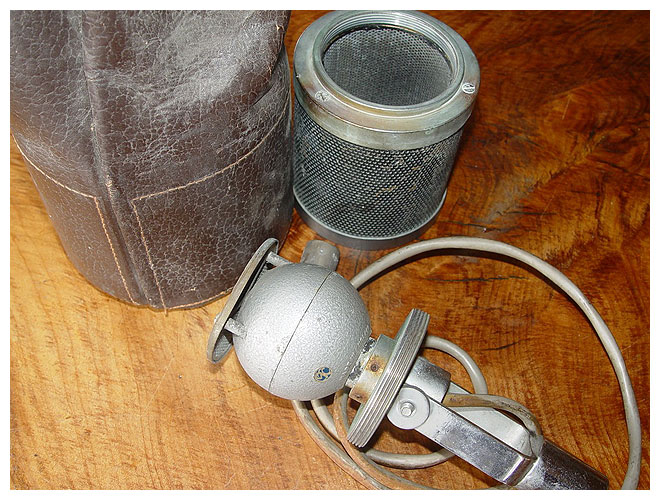

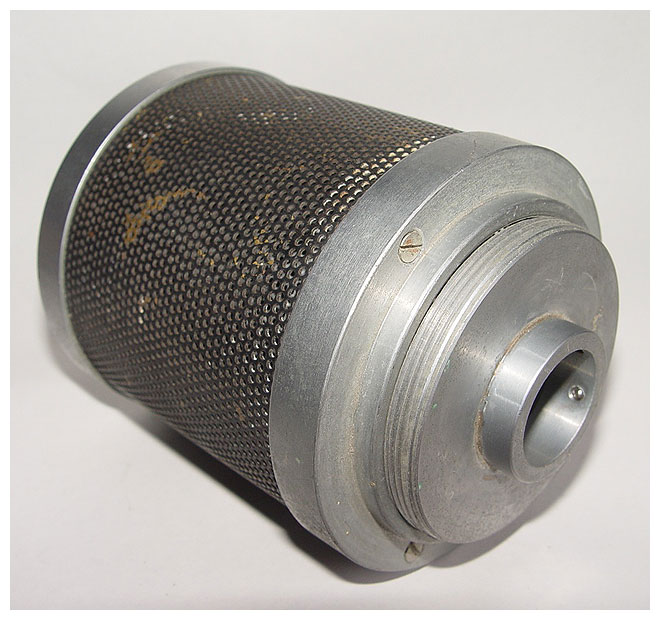

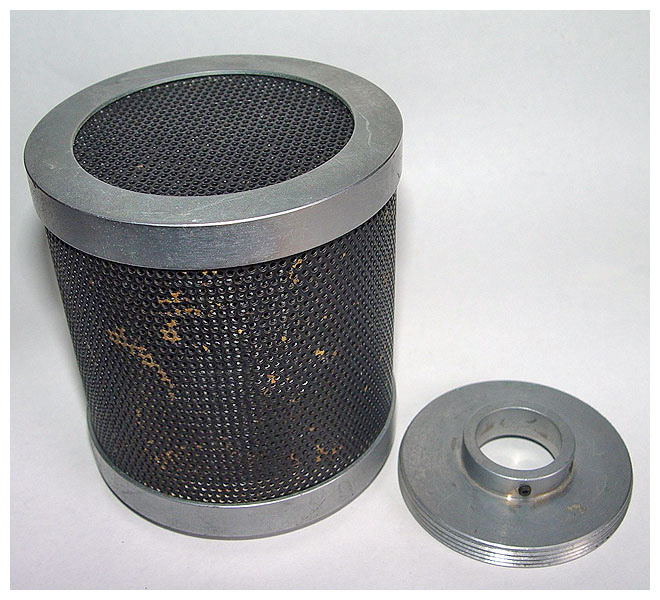

The following seven images were provided through the courtesy of John and Rachel.

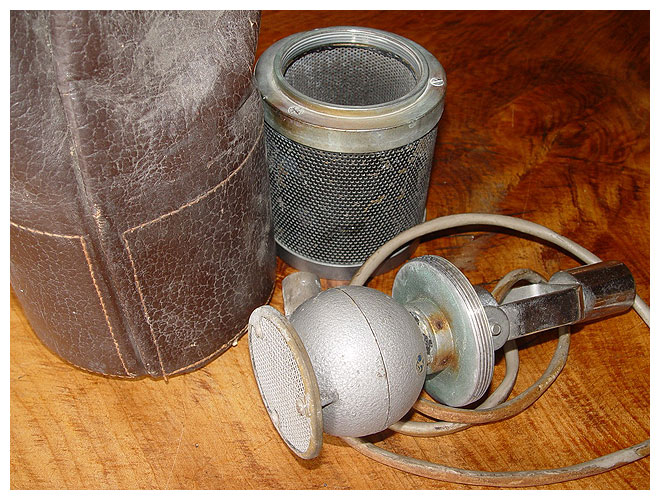

Image courtesy of John and Rachel

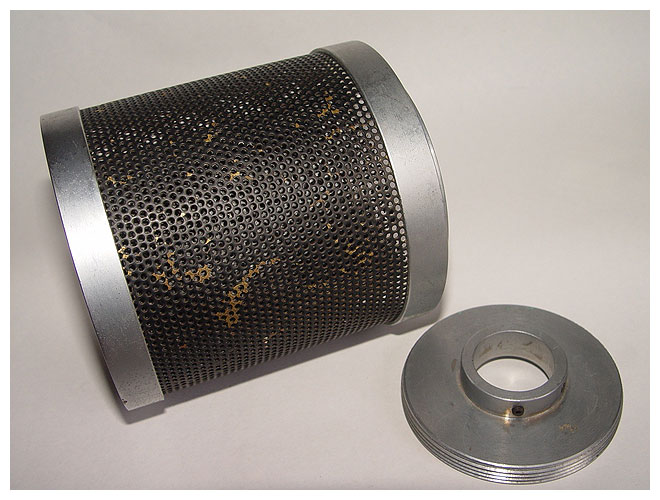

Image courtesy of John and Rachel

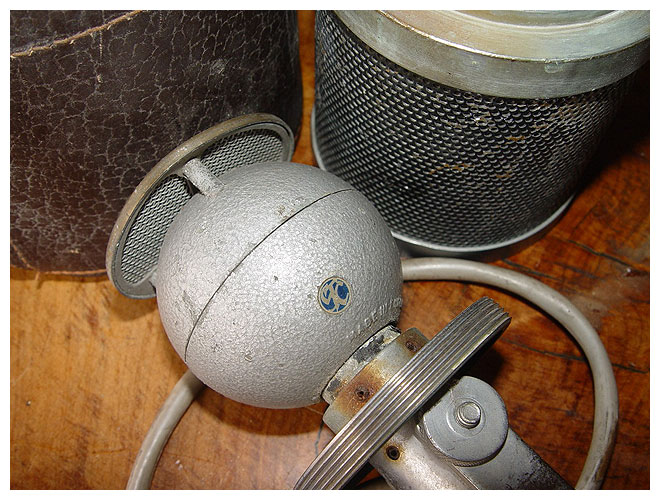

Image courtesy of John and Rachel

Image courtesy of John and Rachel

Image courtesy of John and Rachel

Image courtesy of John and Rachel

Image courtesy of John and Rachel

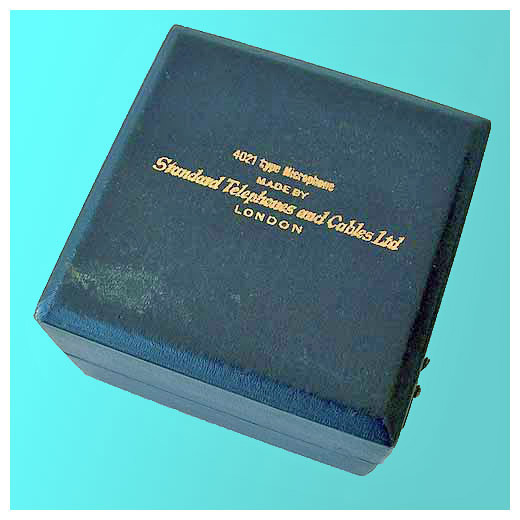

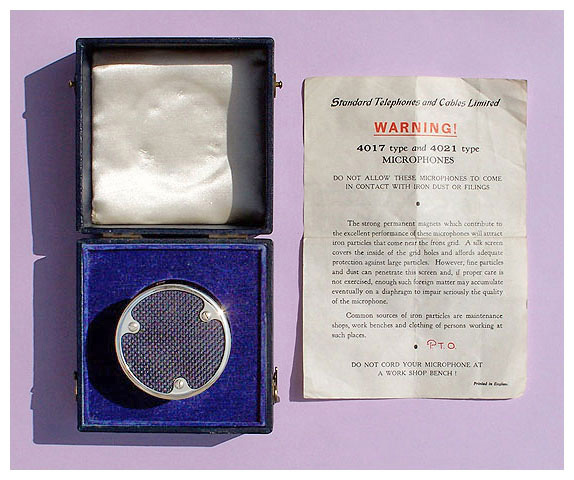

STC 4021

STC 4021

STC 4021

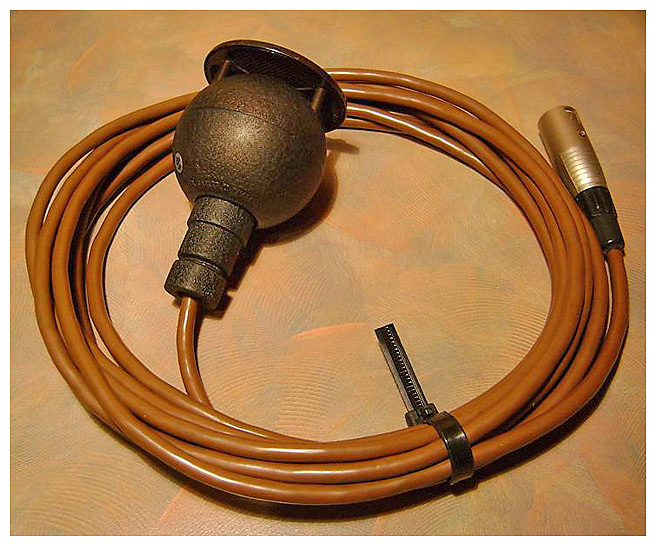

Coiled

Please visit the lower section of this page for additional STC 4021 technical specifications.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

Novelist W. Somerset Maugham presents The Razor’s Edge to Librarian of Congress Dr. Luther H. Evans.

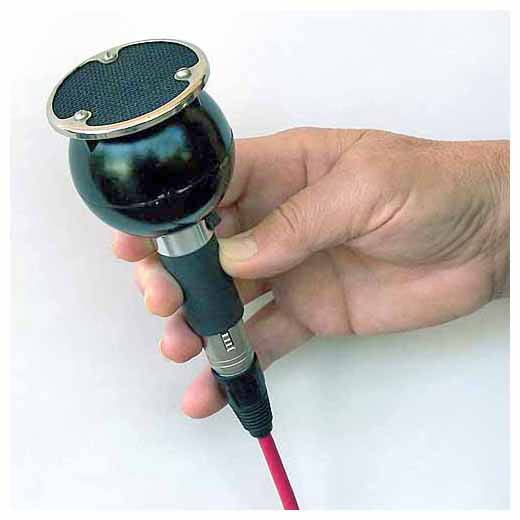

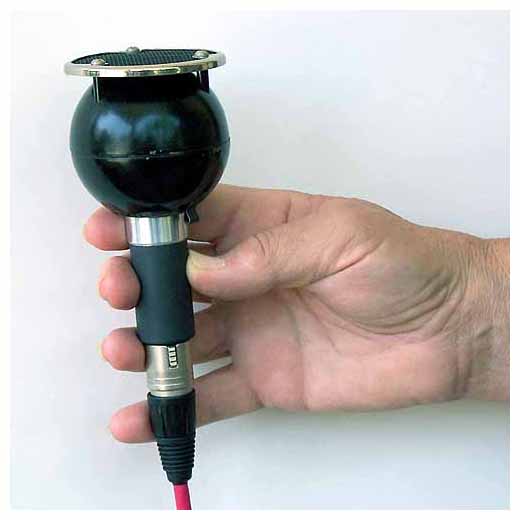

For those of us who use the old STC mics, it can be a challenge finding a cable to fit. Below are three images of an adapter that converts these mics for use with an XLR-equipped cable. The same adapter works with STC mics as well as with Coles Electroacoustics mics. These adapters are not available at this web site.

Adapter
A few vendors offer these adapters on the Web.

Adapter
These convert the old WE, Coles, and STC connector to XLR.

Adapter
Obviously a contemporary XLR-equipped cable can then be used.

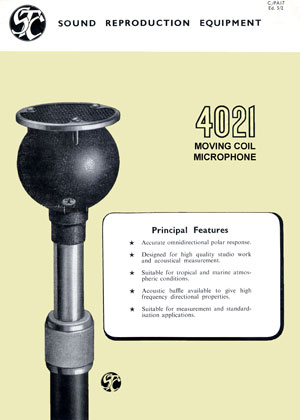

Booklet cover
Download the brochure for this mic.
